Hi there,
I did a thing, for rendering chessboards and drawing some arrows and circles on it. I find it useful for studying theory, analyzing games (e.g. you can highlight all your glorious blunders, or show what were the crucial ideas in the position this way). I hope someone will find it useful, it was funny to do it.
function parse_fen(fen)
local pieces = {}
local rows = {}
local i = 1
local row_start = 1
while i <= #fen do
local char = string.sub(fen, i, i)
if char == "/" then
table.insert(rows, string.sub(fen, row_start, i - 1))
row_start = i + 1
end
i = i + 1
end
table.insert(rows, string.sub(fen, row_start, i))
for j = 1, 8 do
local current_row = {}
local row = rows[j]
local k = 1
while k <= #row do
local char = string.sub(row, k, k)
if char >= "1" and char <= "8" then
local empty_squares = tonumber(char)
for _ = 1, empty_squares do
table.insert(current_row, "")
end
else
table.insert(current_row, char)
end
k = k + 1
end
pieces[j] = current_row
end
return pieces
end
function parse_squares(fields, flip)
local parsed_squares = {}
for _, field in ipairs(fields) do
local file, rank = field:match("(%a)(%d)")
if file and rank then
local x = string.byte(file:upper()) - string.byte("A") + 1
local y = tonumber(rank)
if flip then
x = 9 - x
y = 9 - y
end
table.insert(parsed_squares, {x, y})
end
end
return parsed_squares
end
function parse_arrows(arrows, flip)
local parsed_arrows = {}
for _, arrow in ipairs(arrows) do
local start_file, start_rank, end_file, end_rank = arrow:match("(%a)(%d)-(%a)(%d)")
if start_file and start_rank and end_file and end_rank then
local start_x = string.byte(start_file:upper()) - string.byte("A") + 1
local start_y = tonumber(start_rank)
local end_x = string.byte(end_file:upper()) - string.byte("A") + 1
local end_y = tonumber(end_rank)
if flip then
start_x = 9 - start_x
start_y = 9 - start_y
end_x = 9 - end_x
end_y = 9 - end_y
end
table.insert(parsed_arrows, {start_x, start_y, end_x, end_y})
end
end
return parsed_arrows
end
function generate_chessboard(fen, side, arrows, circles)
if fen == "start" then
fen = "rnbqkbnr/pppppppp/8/8/8/8/PPPPPPPP/RNBQKBNR"
end
local pieces = parse_fen(fen)
local flip = side == "black"
local parsed_arrows = parse_arrows(arrows or {}, flip)
local parsed_circles = parse_squares(circles or {}, flip)
local html = "<div style='display: flex; flex-direction: column; align-items: center; position: relative;'>"
-- Board container
html = html .. "<div style='display: grid; grid-template-columns: repeat(8, 1fr) auto; grid-template-rows: repeat(8, 1fr) auto; width: 50vmin; height: 50vmin; border: 2px solid black; position: relative;'>"
local files = {"A", "B", "C", "D", "E", "F", "G", "H"}
local ranks = {8, 7, 6, 5, 4, 3, 2, 1}
if flip then
files = {"H", "G", "F", "E", "D", "C", "B", "A"}
ranks = {1, 2, 3, 4, 5, 6, 7, 8}
end
local piece_urls = {
P = "https://upload.wikimedia.org/wikipedia/commons/4/45/Chess_plt45.svg",
R = "https://upload.wikimedia.org/wikipedia/commons/7/72/Chess_rlt45.svg",
N = "https://upload.wikimedia.org/wikipedia/commons/7/70/Chess_nlt45.svg",
B = "https://upload.wikimedia.org/wikipedia/commons/b/b1/Chess_blt45.svg",
Q = "https://upload.wikimedia.org/wikipedia/commons/1/15/Chess_qlt45.svg",
K = "https://upload.wikimedia.org/wikipedia/commons/4/42/Chess_klt45.svg",
p = "https://upload.wikimedia.org/wikipedia/commons/c/c7/Chess_pdt45.svg",
r = "https://upload.wikimedia.org/wikipedia/commons/f/ff/Chess_rdt45.svg",
n = "https://upload.wikimedia.org/wikipedia/commons/e/ef/Chess_ndt45.svg",
b = "https://upload.wikimedia.org/wikipedia/commons/9/98/Chess_bdt45.svg",
q = "https://upload.wikimedia.org/wikipedia/commons/4/47/Chess_qdt45.svg",
k = "https://upload.wikimedia.org/wikipedia/commons/f/f0/Chess_kdt45.svg"
}
for i = 1, 8 do
local row = ranks[i]
for j = 1, 8 do
local col = flip and (9 - j) or j
local isDark = ((row + col) % 2 == 1)
local bgColor = isDark and "#6d4c41" or "#ffebcd"
local piece = pieces[9 - row][col]
local pieceHtml = ""
if piece and piece ~= "" then
pieceHtml = "<img src='" .. piece_urls[piece] .. "' style='width: 80%; height: 80%; object-fit: contain;'>"
end
html = html
.. "<div style='display: flex; align-items: center; justify-content: center;"
.. "background:" .. bgColor .. ";"
.. "border: 1px solid black;"
.. "font-size: 4vmin; line-height: 1;'>"
.. pieceHtml
.. "</div>"
end
-- Rank labels on the right with equal spacing to file labels
html = html .. "<div style='display: flex; align-items: center; justify-content: center; font-weight: bold; font-size: 2vmin; margin-left: 0.5vmin;'>" .. row .. "</div>"
end
-- File labels at the bottom
for _, file in ipairs(files) do
html = html .. "<div style='display: flex; align-items: center; justify-content: center; font-weight: bold; font-size: 2vmin; margin-top: 0.5vmin;'>" .. file .. "</div>"
end
html = html .. "</div>" -- End board grid
html = html .. "<div style='position: absolute; width: 48.25vmin; height: 46.75vmin; margin-left: -1.75vmin; margin-top: 0.25vmin; align-items: center; display: flex; justify-content: center'>"
html = html .. "<svg viewBox='0 0 8 8' preserveAspectRatio='none' style='width: 100%; height: 100%;'>"
for _, arrow in ipairs(parsed_arrows) do
-- In the SVG viewBox, each square is 1 unit.
-- The center of a square at column X and rank R is at (X - 0.5, (8 - R) + 0.5).
local start_x = arrow[1] - 0.5
local start_y = (8 - arrow[2]) + 0.5
local end_x = arrow[3] - 0.5
local end_y = (8 - arrow[4]) + 0.5
html = html .. "<line x1='" .. start_x .. "' y1='" .. start_y .. "' x2='" .. end_x .. "' y2='" .. end_y .. "' stroke='rgba(0, 128, 0, 0.5)' stroke-width='0.1' stroke-linecap='round' marker-end='url(#arrowhead)' />"
end
if parsed_circles then
for _, circle in ipairs(parsed_circles) do
local cx = circle[1] - 0.5
local cy = (8 - circle[2]) + 0.5
html = html .. "<circle cx='" .. cx .. "' cy='" .. cy .. "' r='0.4' fill='none' stroke='rgba(0, 128, 0, 0.5)' stroke-width='0.1' />"
end
end
html = html .. [[
<defs>
<marker id="arrowhead" markerWidth="10" markerHeight="7" refX="4" refY="3.5"
orient="auto" markerUnits="strokeWidth">
<polygon points="0 0, 5 3.5, 0 7" fill="rgba(0, 128, 0, 0.5)" />
</marker>
</defs>
]]
html = html .. "</svg>"
html = html .. "</div>" -- End arrow container
html = html .. "</div>" -- End board container
html = html .. "</div>" -- End main container
return {
html = html,
display = "block",
cssClasses = {"square-chessboard"}
}
end

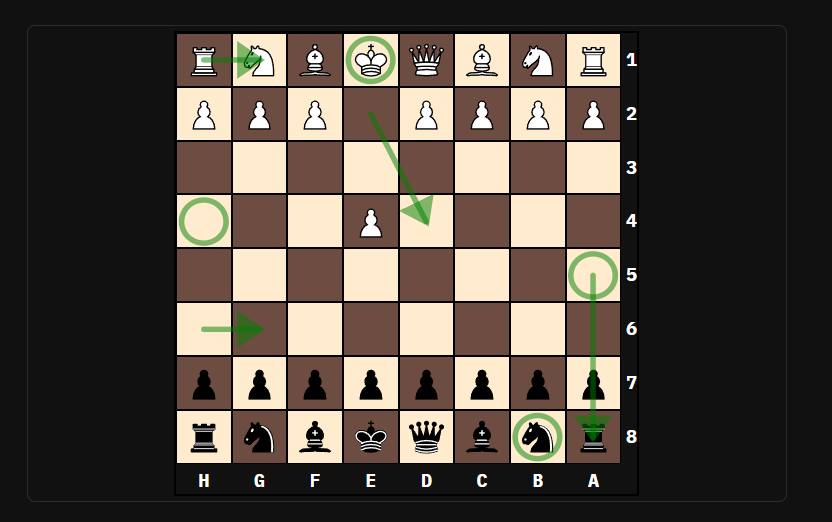

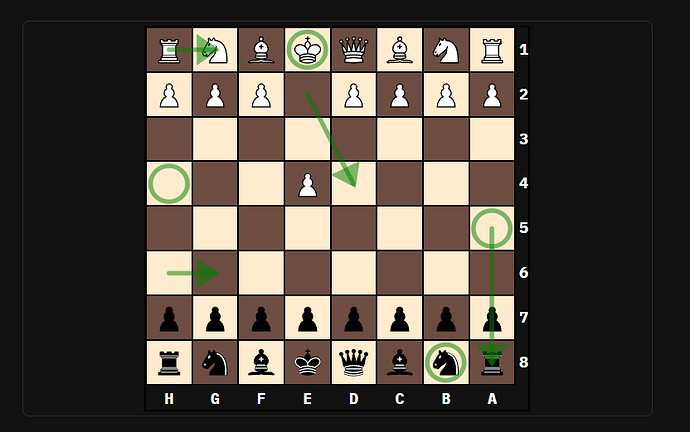

Example usage: ${generate_chessboard("rnbqkbnr/pppppppp/8/8/4P3/8/PPPP1PPP/RNBQKBNR b KQkq - 0 1", "black", {"h1-g1", "h6-g6", "e2-d4", "a5-a8"}, {"a5", "h4", "e1", "b8"})}
Cheers
